Press Automation System

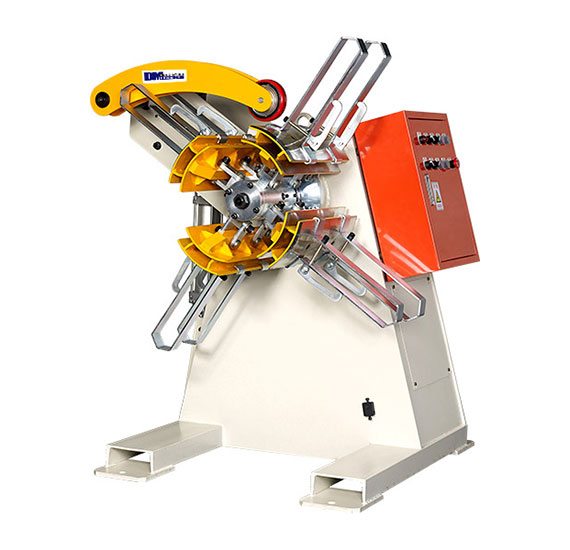

UNCOILER
- Characteristics and Advantages
- Easy to install coils
- Protecting speed reducer completely by using a friction brake
- Reducing rotating inertia when stopping by installing a worm reducer
- Absorbing rotational inertia due to the weight of material
- Various options available according to the kinds of material or treatment methods
- Possible to uncoil coil material smoothly through 4–segment precise concentric circles
- Specifications
| Item/Model | Unit | DMU- 100 |
DMU- 300 |
DMU- 500 |
DMU- 130 |
DMU- 240 |
DMU- 350 |
DMU- 560 |
DMU- 580 |
|---|---|---|---|---|---|---|---|---|---|
| Material Width | ㎜ | 150 | 200 | 300 | 300 | 400 | 500 | 600 | 800 |
| Coil Weight | kg | 100 | 300 | 500 | 1000 | 2000 | 3000 | 5000 | |
| Material In Dia | ㎜ | 200~400 | 300~508 | 400~508 | 508 | ||||
| Material Out Dia | ㎜ | 800 | 1,000 | 1,200 | 1,200~1,400 | ||||
| Drup Expansion |
- | Bevel gear type | Manual Operation | Reduction Operation | Possible to Eniarge or Reduce Through Hydraulic Pressure | ||||
| Main Motor | kw | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.75 | ||
| Power Supply | v | AC 200V(380) | |||||||
| Operating Mode | - | Dancing Bar, Photo Sensor | |||||||
| Options | - | Inverter, Hanger Cover,Double Uncoiler | |||||||
