Press Automation System

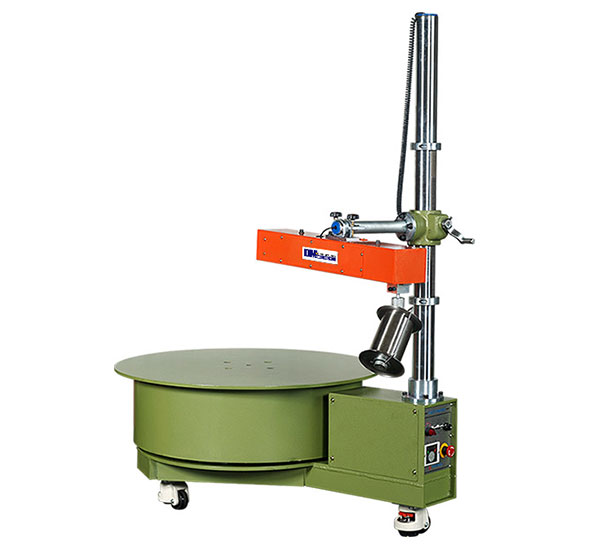

PALLET UNCOILER
- Characteristics and Advantages
- Possible to lade many coils in a small space
- Reducing the treating time of coil material
- No need for a long loop space
- Available with no restriction to inside of outside diameter of the coil
- Low–price and high–efficiency guaranteed
- Easy to operate and control speed through inverter system
- Specifications
| Item/Model | Unit | DMPU- 1000 |
DMPU- 2000 |
DMPU- 3000 |
|---|---|---|---|---|
| Material Width | max ㎜ | 125 | ||
| Coil Thickness | ㎜ | 0.3~1.2 | ||
| Coil Weight | kg | 1,000 | 2,000 | 3,000 |
| Coil Out Dia | ㎜ | 800,1000,1200 | 1200 | 1200 |
| Pallet Height | ㎜ | 600 | ||
| Main Motor | ㎾ | 0.75 | 1.5 | 2.2 |
| Power Supply | v | AC 200V(380) | ||
| Operating Mode | - | Dancing Bar, Inverter | ||
