Press Automation System

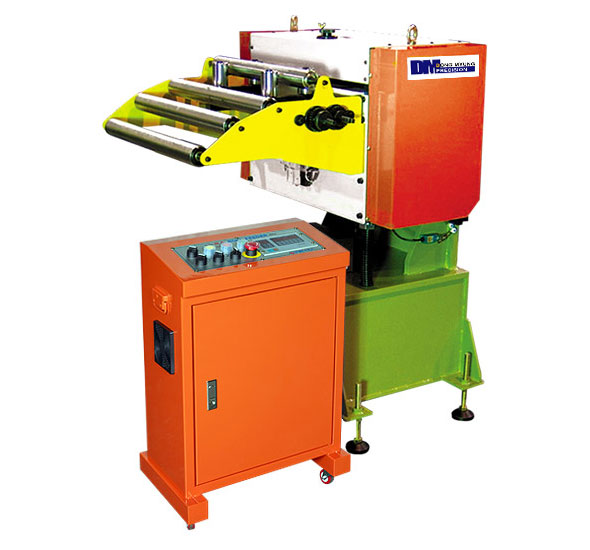

NC ROLL FEEDER
- Characteristics and Advantages
- High durability and high speed transfer guaranteed
- Easy to manipulate – Manipulation easy to adjust the feeding distance
- Simultaneous operation with other devices available by the AC servomotor
- Improving the feeding torque through the double reduction gear
- Minimizing the roll tolerance when opening or closing the roll through the upper roll joint system
- Excellence in quickness of the roll release
- Easy to adjust the height by enabling the table to automatically move up and down
- Easy to install other detective devices
- Specifications
| Item/Model | Unit | DMNCRF- 3016 |
DMNCRF- 4016 |
DMNCRF- 5016 |
DMNCRF- 3032 |
DMNCRF- 4032 |
DMNCRF- 5032 |
DMNCRF- 6032 |
DMNCRF- 8032 |
DMNCRF- 4060 |
DMNCRF- 6060 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material Width | ㎜ | 300 | 400 | 500 | 300 | 400 | 500 | 600 | 800 | 400 | 600 |
| Material Thickness | ㎜ | 0.15~1.6 | 0.6~3.2 | 0.9~6.0 | |||||||
| Relationship Between Width& Thickness |
t x ㎜ | - | 2.0x500 | 2.0x600 | 2.0x800 | 2.0x400 | 2.0x600 | ||||
| 1.6x300 | 1.6x400 | 1.6x500 | 3.2x300 | 3.2x400 | 3.2x400 | 3.2x450 | 3.2x500 | 6.0x300 | 6.0x400 | ||
| Feeding Picth | ㎜ | 9999.99 | |||||||||
| Top Speed | m/min | 22 | 22 | 16 | |||||||
| Main Servo Motor | ㎾ | 2.0 | 3.5 | 3.5 | 5.0 | ||||||
| Releasing Methode | AIR CYLINDER | ||||||||||
| Power Supply | v | AC220V / 60Hz | |||||||||
| Pneumatic Pressure | ㎏/㎠ | 5.0 | |||||||||
| Operating Mode | - | Press & Feeder master, Digital S/W Set | |||||||||
| Options | - | Down Trans Terminal Detectors Feed Rolls Covered With Urethane Oil Supplying Device |
|||||||||
