NLF-TH-TYPE

Press Automation System

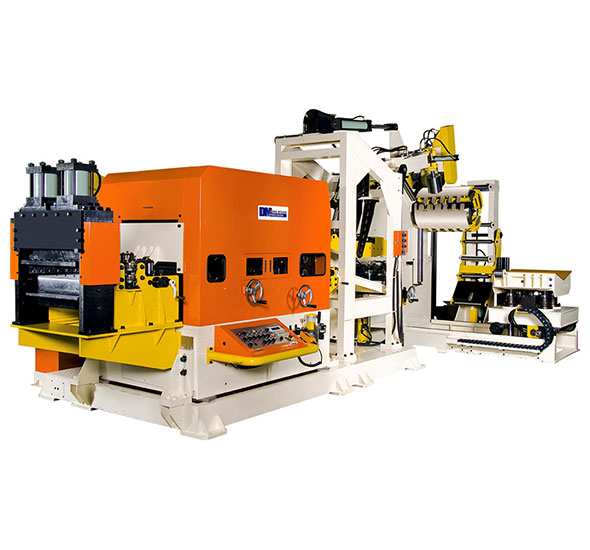

NC LEVELLER FEEDER(TH-TYPE)

  • null
    Machine Composition
  • End Shear (Option)
  • Oiler (Option)
  • NC Leveller Feeder
  • Entry Guide
  • Opener
  • Drum Support (Option)
  • Auto Uncoiler
  • Coil Lift
  • Loop Sensor
  • Coil Car
  • null
    Coil Insertion
  • Heavy plate coil is forcibly inserted with the use of coil lift and coil insert unit in order to ensure its smooth advancement.
  • A strong oil pressure is forced through before oil insertion is completed so that the operator doesn’t have to manually insert the coil.
  • null
    Coil Removal(Uncoil)
  • The differentiation of the rotary power of uncoiler and opener roll makes the number of coil entanglements decrease and the machine operate silently as an accelerator, when rotating, or a speed reducer when stopping.
  • The three point fixed coil guide built in the uncoiler and the dancing guide roll for the opener roll prevent the coil from being protruded or
    sticked out.
  • null
    Coil Straightness and Precision
  • The roll was placed considering the upward bending of heavy plates and the adjustment of side inclination was made to enhance the straightness which may be influenced by plastic deformation.
  • In addition, the feeding precision was improved by preventing the rotation of the roll, which can be acquired by applying upper roll joint system of the pinch roll.
  • null
    Straightening Capacity

Model DMNCLF-500TH(C) DMNCLF-600TH(C) DMNCLF-700TH(C) DMNCLF-800TH(C) DMNCLF-900TH(C) DMNCLF-1000TH(C)
Thickness
(mm)		 3.2 500 600 700 800 900 1000
4
4.5
5
6 600 700 700 700
7 500 500 600 600 600
8 400 400 400 500 500 500
9 350 350 350 450 450 450
10 250 250 250 350 350 350
11 150 150 150 200 200 200
  • null
    Specifications
Model Unit DMNCLF-500TH(C) DMNCLF-600TH(C) DMNCLF-700TH(C) DMNCLF-800TH(C) DMNCLF-900TH(C) DMNCLF-1000TH(C)
Material Width ㎜ 500 600 700 800 900 1000
Material Thickness ㎜ 3.2~11.0
Material In Dia ㎜ 508(600)
Material Out Dia ㎜ 1,800
Feeding Picth ㎜ 9999.99
Top Speed m/min 16
Coil Weight ㎏ 7,000 10,000
Drum Expansion - Possible to enlarge or reduce through hydraulic pressure
Main Servo Motor ㎾ 22 22~37
Pneumatic Pressure ㎏/㎠ 5
Operating Mode - Press & Feeder master, Digital S/W Set
Options - Coil Car, End Shear, oil spraying device, oil supplying device
