Press Automation System
NC LEVELLER FEEDER(M-TYPE)

  • null

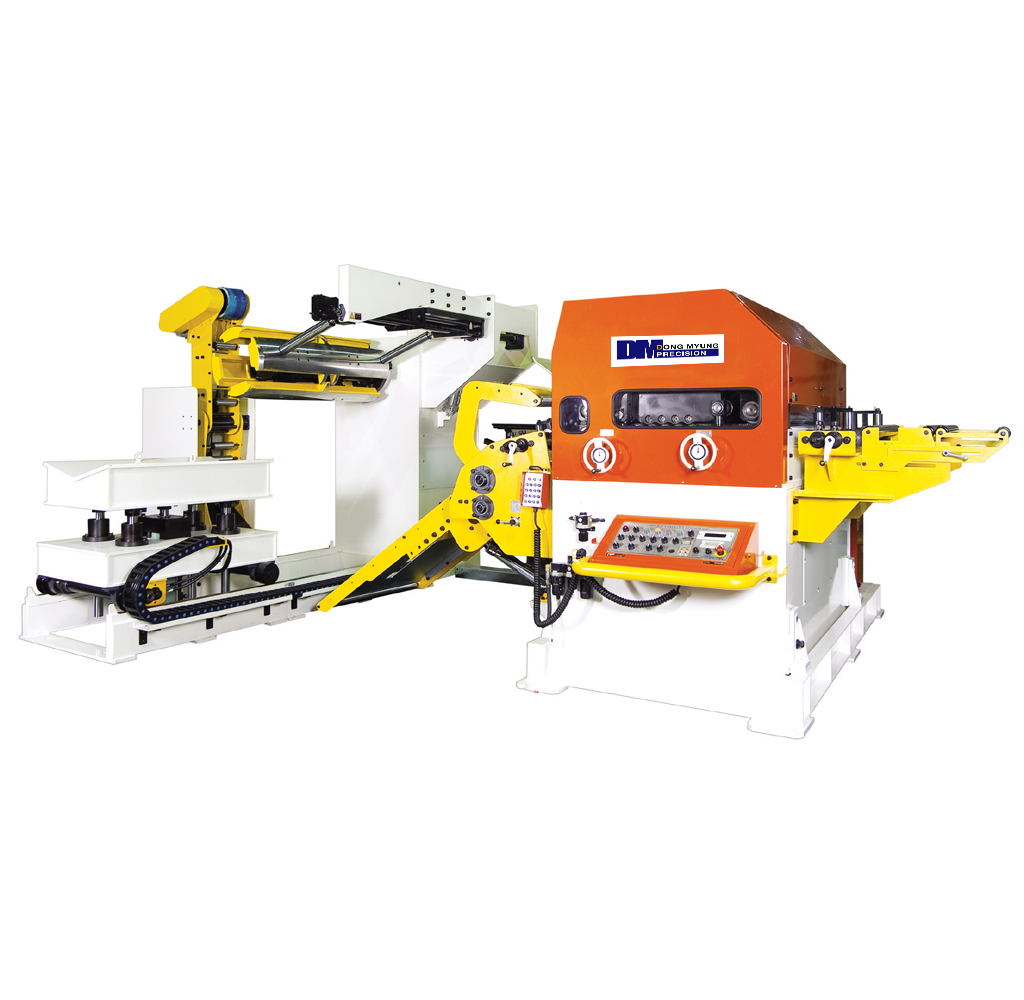

    Machine Composition
  • End Shear (Option)
  • Oiler (Option)
  • NC Leveller Feeder
  • Entry Guide
  • Opener
  • Drum Support (Option)
  • Auto Uncoiler
  • Coil Lift
  • Loop Sensor
  • Coil Car
  • null
    Characteristics and Advantages
  • Suitability of treating medium heavy plate
  • Various kinds of machines available
  • Forcusing on convenience and silence of the operation
  • Improving the easiness of adjusting work height
  • Applying cam and link type release system
  • Realizing the accurate feeding and improving the quick release with the use of joints
  • Intergating the main operational panel
  • Enhancing the straightness by supplementing the insertion guide roll
  • Reinforcing the inertial absorption power of coils
  • Selecion of the AC servomotor making it possible to maintain high precision and establish simple location and distance
  • null
    Straightening Capacity
Model DMNCLF-
400M(C)		 DMNCLF-
500M(C)		 DMNCLF-
600M(C)		 DMNCLF-
700M(C)		 DMNCLF-
800M(C)		 DMNCLF-
1000M(C)		 DMNCLF-
1300M(C)		 DMNCLF-
1500M(C)
Thickness
(mm)		 0.8 400 500 600 700 800 1000 1300 1500
1.0
1.2 700
1.6 600 600 800 900 1000
2.3 500 500 500 700 800 800
2.6 400 450 450 450 600 700 700
3.2 350 350 400 400 400 500 600 600
4.0 150 150 150 150 150 200 200 200
  • null
    Specifications
Item/Model Unit DMNCLF-
400M(C)		 DMNCLF-
500M(C)		 DMNCLF-
600M(C)		 DMNCLF-
700M(C)		 DMNCLF-
800M(C)		 DMNCLF-
1000M(C)		 DMNCLF-
1300M(C)		 DMNCLF-
1500M(C)
Material Width ㎜ 400 500 600 700 800 1000 1300 1500
Material Thickness ㎜ 0.8~3.2
Material In Dia ㎜ 508
Material Out Dia ㎜ 1,500(1,800)
Feeding Picth ㎜ 9999.99
Top Speed m/min 16
Coil Weight ㎏ 3,000~7,000 5,000~10,000
Drum Expansion - Possible to enlarge or reduce through hydraulic pressure
Main Servo Motor ㎾ 5.0~11.0
Pneumatic Pressure ㎏/㎠ 5
Operating Mode - Press & Feeder master, Digital S/W Set
Options - Coil Car, End Shear, oil spraying device, oil supplying device
