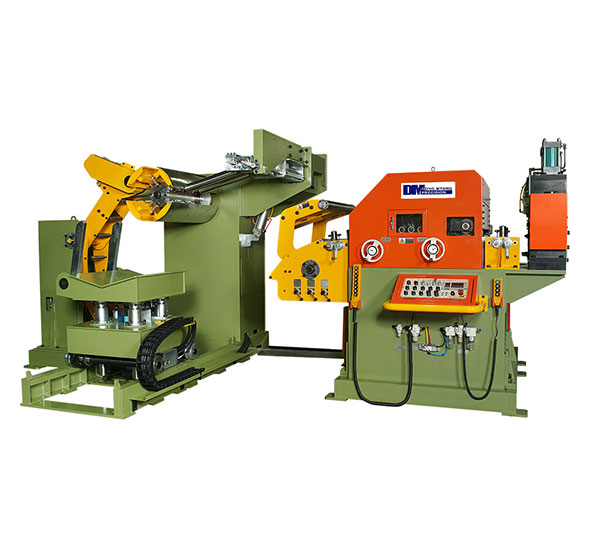

NC LEVELLER FEEDER(MT-TYPE)

  • null
    Machine Composition
  • End Shear (Option)
  • Oiler (Option)
  • NC Leveller Feeder
  • Entry Guide
  • Opener
  • Drum Support (Option)
  • Auto Uncoiler
  • Coil Lift
  • Loop Sensor
  • Coil Car
  • null
    Characteristics and Advantages
  • Suitability of treating medium heavy and heavy plates
  • Forming compact operational line
  • Forcusing on convenience and silence of the operation
  • Improving the easiness of adjusting work height
  • Applying cam and link type release system
  • Realizing the accurate feeding and improving the quick release with the use of joints
  • Intergating the main operational panel
  • Enhancing the straightness by supplementing the insertion guide roll
  • Reinforcing the inertial absorption power of coils
  • Various kinds of machines available
  • Selecion of the AC servomotor making it possible to maintain high precision and establish simple location and distance
  • null
    Straightening Capacity
Model DMNCLF-400MT(C) DMNCLF-500MT(C) DMNCLF-600MT(C) DMNCLF-700MT(C) DMNCLF-800MT(C) DMNCLF-1000MT(C)
Thickness
(mm)		 1.2 400 500 600 700 800 1000
1.6
2.0
2.3 900
2.6 700 800
3.2 600 600 700
4.0 500 500 550 650
4.5 400 450 450 500 600
5.0 350 350 400 400 450 550
6.0 300 300 350 350 400 500
  • null
    Specifications
Model Unit DMNCLF-400MT(C) DMNCLF-500MT(C) DMNCLF-600MT(C) DMNCLF-700MT(C) DMNCLF-800MT(C) DMNCLF-1000MT(C)
Material Width ㎜ 400 500 600 700 800 1000
Material Thickness ㎜ 1.2~6.0
Material In Dia ㎜ 508(600)
Material Out Dia ㎜ 1,800
Feeding Picth ㎜ 9999.99
Top Speed m/min 16
Coil Weight ㎏ 5,000 5,000~7,000
Drum Expansion - Possible to enlarge or reduce through hydraulic pressure
Main Servo Motor ㎾ 7.0 7.0~11.0
Pneumatic Pressure ㎏/㎠ 5
Operating Mode - Press & Feeder master, Digital S/W Set
Options - Coil Car, End Shear, oil spraying device, oil supplying device
