Press Automation System

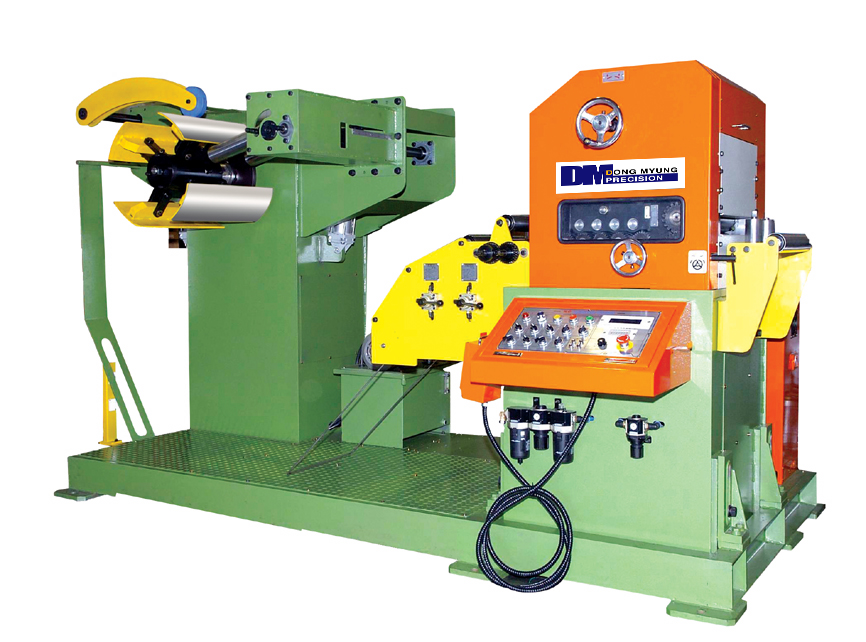

NC LEVELLER FEEDER(L-TYPE)
- Characteristics and Advantages
- Suitability of treating thin plates
- Foming compact operational line
- Focusing on convenience and silence of the operation
- Improving the easiness of adjusting work height
- Applying cam and link type release system
- Realizing the accurate feeding and improving the quick release with the use of joints
- Integrating the main operational panel
- Enhancing the straightness by supplementing the insertion guide roll
- Selecting coil loop and various kinds of machines
- Selection of the AC servomotor making it possible to maintain high precision and establish simple location and distance
- Straightening Capacity
| Model | DMNCLF- 300L(C) |
DMNCLF- 400L(C) |
DMNCLF- 500L(C) |
DMNCLF- 600L(C) |
DMNCLF- 700L(C) |
|
|---|---|---|---|---|---|---|
| Thickness (mm) |
0.3-0.8 | 300 | 400 | 500 | 600 | 700 |
| 1 | ||||||
| 1.2 | 650 | |||||
| 1.6 | 430 | 425 | 420 | |||
| 1.8 | 350 | 345 | 345 | 340 | ||
| 2 | 270 | 270 | 260 | 260 | 250 | |
| 2.3 | 200 | 200 | 190 | 190 | 180 | |
- Specifications
| Item/Model | Unit | DMNCLF- 300L(C) |
DMNCLF- 400L(C) |
DMNCLF- 500L(C) |
DMNCLF- 600L(C) |
DMNCLF- 700L(C) |
DMNCLF- 800L(C) |
DMNCLF- 900L(C) |
DMNCLF- 1000L(C) |
DMNCLF- 1200L(C) |
DMNCLF- 1300L(C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material Width | ㎜ | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 |
| Material Thickness | ㎜ | 0.5~2.3 | 0.6~2.3 | ||||||||
| Material In Dia | ㎜ | 508(400) | 508 | ||||||||
| Material Out Dia | ㎜ | 1,300 | 1,500 | ||||||||
| Feeding Picth | ㎜ | 9999.99 | |||||||||
| Top Speed | m/min | 25 | 25 | ||||||||
| Coil Weight | ㎏ | 3,000~5,000 | 3,000~7,000 | ||||||||
| Drum Expansion | - | Possible to enlarge or reduce through hydraulic pressure Manual operation |
|||||||||
| Main Servo Motor | ㎾ | 3.5 | 5.0 | 7.0 | 11.0 | ||||||
| Pneumatic Pressure | ㎏/㎠ | 5 | |||||||||
| Operating Mode | - | Press & Feeder master, Digital S/W Set | |||||||||
| Options | - | Coil Car, End Shear, oil spraying device, oil supplying device | |||||||||
