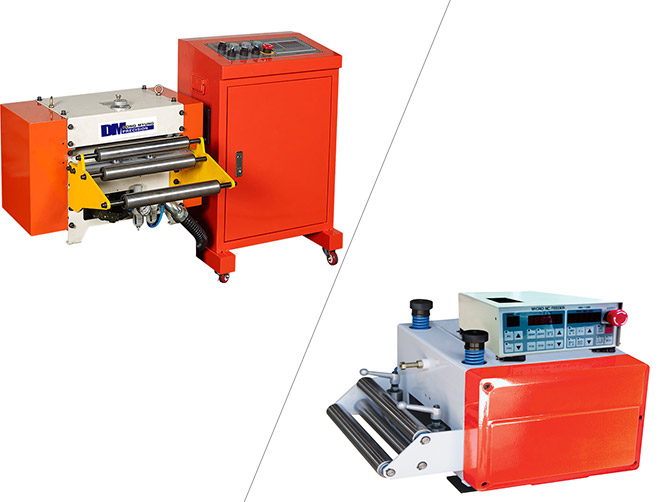

MINI NC ROLL FEEDER
- Characteristics and Advantages
- High durability and high speed transfer guaranteed
- Easy to manipulate – Manipulation easy to adjust the feeding distance
- Simultaneous operation with other devices available by the AC servomotor
- Easy to install b lotting out connection wires
- Minimizing the roll tolerance when opening or closing the roll through the upper roll joint system
- Excellence in quickness of the roll release
- Removing the noises completely
- Easy to install other detective devices
- Specifications
| Item/Model | Unit | DMMNCRF- 150M |
DMMNCRF- 200M |
DMMNCRF- 300M |
DMMNCRF- 400M |
DMMNCRF- 500M |
DMICRO- 150 |
DMICRO- 200 |
DMICRO- 300 |
DMICRO- 400 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material Width | ㎜ | 150 | 200 | 300 | 400 | 500 | 150 | 200 | 300 | 400 | |
| Material Thickness | ㎜ | 0.15~3.2 | 0.1~2.3 | ||||||||
| Relationship Between Width& Thickness |
t x ㎜ | 0.8X150 | 0.8X200 | 1.0X300 | 1.0X400 | 1.0x500 | 0.5x150 | 0.5x200 | 0.5x300 | 0.5x400 | |
| 3.2x80 | 3.2x100 | 3.2x80 | 3.2x100 | 3.2x100 | 2.3x50 | 2.3x80 | 2.3x100 | 2.3x100 | |||
| Feeding Picth | ㎜ | 9999.99 | |||||||||
| Top Speed | m/min | 45 | 28 | ||||||||
| Main Servo Motor | ㎾ | 0.6~1.0 | 1.0 | 0.5 ~ 0.8 | |||||||
| Releasing Methode | AIR CYLINDER | ||||||||||
| Power Supply | v | AC220V / 60Hz | |||||||||
| Pneumatic Pressure | ㎏/㎠ | 5.0 | |||||||||
| Operating Mode | - | Press & Feeder master, Digital S/W Set | |||||||||
| Options | - | Terminal Detectors 2 Step Feed Control Unit Feed Rolls Covered with Urethane |
|||||||||
