Press Automation System

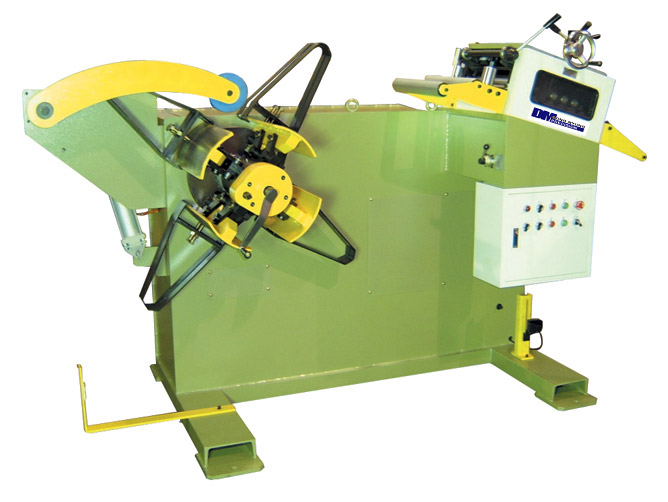

LEVELLER UNCOILER
- Characteristics and Advantages
- Uncoiler loop system
-A single loop driving with a leveler and an uncoiler (Suitable for treating thin plates)
-Forced operation of leveler through non operation of uncoiler (Suitable for treating heavy or medium –Heavy plates)
- Saving space by integrating leveler and uncoiler
- Controlling correction direction by adjusting roll compression level
- Various options available through drum enlarged or reduced method
- Pinch pressure spring and cylinder pressure method
- Specifications
| Item/Model | Unit | DMLU- 1516 |
DMLU- 2016 |
DMLU- 3016 |
DMLU- 2032 |
DMLU- 3032 |
DMLU- 4032 |
DMLU- 5032 |
DMLU- 6032 |
DMLU- 3045 |
DMLU- 4045 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material Width | ㎜ | 150 | 200 | 300 | 200 | 300 | 400 | 500 | 600 | 300 | 400 |
| Material Thickness | ㎜ | 0.15~1.6 | 0.8~3.2 | 1.2~4.5 | |||||||
| Top Speed | m/min | 22 | 22 | 16 | |||||||
| Coil Weight | kg | 300~1000 | 500~2000 | 2000~5000 | |||||||
| Coil In Dia | ㎜ | 400(508) | 508 | 508 | |||||||
| Coil Out Dia | ㎜ | 1,200 | 1,500 | 1,500 | |||||||
| Drum Expansion | Manual Operation | Reduction Operation | Possible to Enlarge or Reduce Through Hydraulic Pressure | ||||||||
| Pinch roll Up/Down |
cam handle | Air Cylinder | |||||||||
| Power Supply | v | AC 200V(380) | |||||||||
| Operating Mode | - | Uncoiler: Photo Sensor, Leveller: Dancing Bar | |||||||||
| Options | - | Inverter, Hanger Cover | |||||||||
