Press Automation System

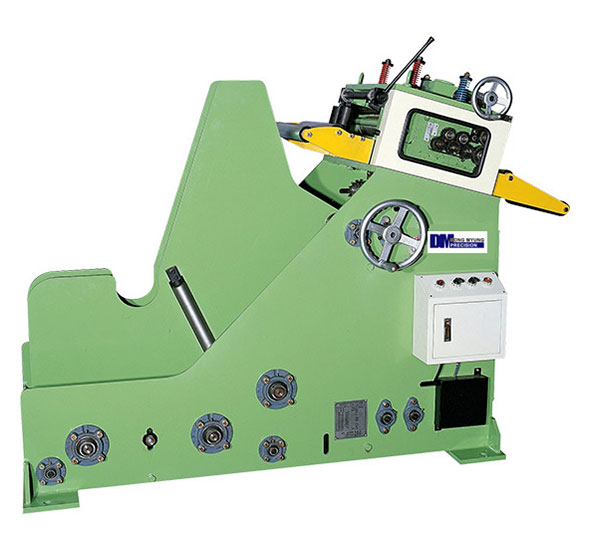

LEVELLER CRADLE
- Characteristics and Advantages
- Easy to install coils
- Easy to use composite system of oil lading and leveling function
- No need for additional guide by adjusting material width manually
- Efficient use of work space
- Easy to control operational panel
- Even an unskilled person can learn how to operate within a short period of time
- Specifications
| Item/Model | Unit | DMLC- 2016 |
DMLC- 1532 |
DMLC- 2032 |
DMLC- 3032 |
DMLC- 4032 |
|---|---|---|---|---|---|---|
| Material Width | ㎜ | 200 | 150 | 200 | 300 | 400 |
| Material Thickness | ㎜ | 0.6~1.6 | 0.8~3.2 | 0.8~3.2 | ||
| Top Speed | m/min | 16 | ||||
| Coil Weight | kg | 1,000 | 1,000~2,000 | 2000 | ||
| Material In Dia | ㎜ | 400 | 508 | |||
| Material Out Dia | ㎜ | 1,200 | 1,200 | 1,500 | ||
| Pinch roll Up/Down |
- | Cam Handle | Air Cylinder | |||
| Power Supply | v | AC 200V(380) | ||||
| Operating Mode | - | Dancing Bar | ||||
| Options | - | Inverter | ||||
