Press Automation System

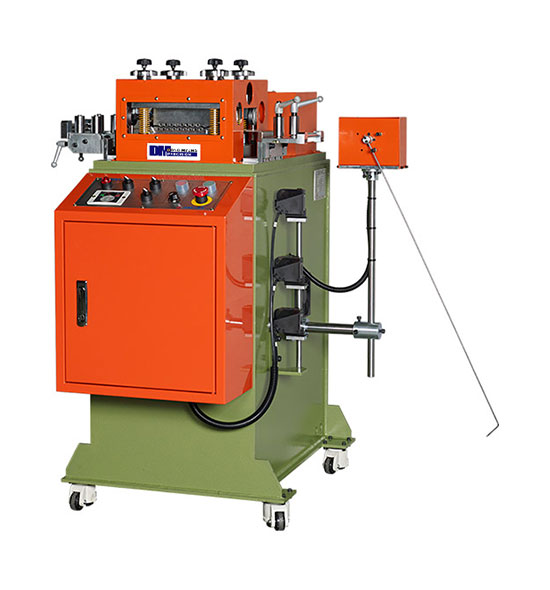

FINE LEVELLER

  • null
    Characteristics and Advantages
  • Precision leveling function
  • Easy to control speed by using an inverter
  • Possible to control the bending direction of material through 4-point control system
  • Isodiametric distribution through universal joint power system
  • Ensuring the correct direction of material by inserting O.U bending roll
  • Preventing roll drooping by using a back-up roll
  • null
    Specifications
Item/Model Unit DMFL-
1010		 DMFL-
1510		 DMFL-
2010		 DMFL-
1512		 DMFL-
2012		 DMFL-
1532		 DMFL-
2032		 DMFL-
6032
Material Width ㎜ 100 150 200 150 200 150 200 600
Material Thickness ㎜ 0.15~1.0 0.3~1.2 0.5~3.2 1.2~3.2
Relationship Between
Width& Thickness		 t x ㎜ 0.5x100 0.3x150 0.3x200 0.8x150 0.5x200 1.0x150 1.2x200 2.3x600
1.0x30 1.0x30 1.0x50 1.2x100 1.2x100 3.2x100 3.2x100 3.2x400
Top Speed m/min 5~16 5~12 5~10 3~8
Straightening Roll Dia ㎜ Ø12 Ø22 Ø45 Ø68
Level Roll ea 9/9 6/7
Main Motor kw 0.75~1.5 2.2 3.75
Power Supply v AC220V(380)
Operating Mode - Dancing Bar
Options - Upper Roll Open
