Press Automation System

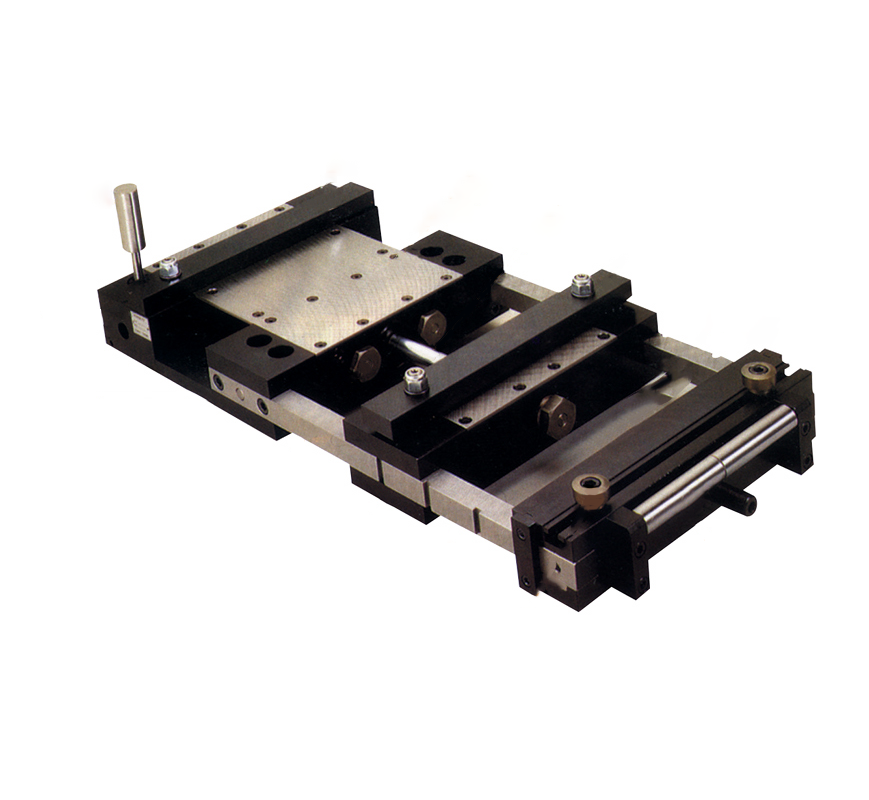

AIR FEEDER

  • null
    Characteristics and Advantages
  • Precision improved by prevention the materials from sliding through the increase of a transfer clamp
  • Feeder protection through air cushion in the friction between the fixing and transfer part
  • High compatibility between the main body, the materials, and friction parts
  • Solid guide rail and easy installation
  • Pilot modification, solenoid valves, combining solenoid valve and release type
  • For other than basic specifications, special models are designed through special orders
  • null
    Specifications
Item/Model Unit AF-
0405		 AF-
0415		 AF-
060		 AF-
0615		 AF-
100		 AF-
1030		 AF-
150		 AF-
1530		 AF-
200D		 AF-
250D		 AF-
300D
Max meterial width ㎜ 40 40 60 60 100 100 150 150 200 250 300
Feeding length ㎜ 50 150 60 150 100 300 150 300 200 250 300
Max material thickness ㎜ 1.2 0.6 2 1.2 2.3 1.4 2.3 1.8 2.3 2.5 2.5
Max air pressure ㎏/㎠ 7
Stroke per minute spm 220 60 200 55 165 50 120 45 100 65 50
Fixed clamp pressure kg 60 60 122 122 158 198 198 198 366 492 647
Moving clamp pressure kg 60 60 122 122 158 198 198 198 366 492 647
Tensile force kg 17 17 33 33 47 68 63 68 126 163 163
Air consumption L/min 32 26 78 45 124 145 178 130 376 423 363
Weight kg 3.2 4.2 5.2 6.8 10.8 19 17.2 23 32.2 49.6 65
